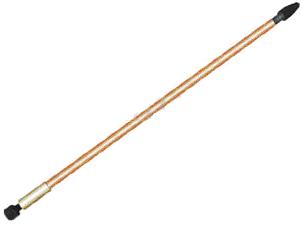

Copper Bonded Steel Ground Rod

Earth Electrodes (Copper Bonded Steel Rods) as per UL 467-2007. Copper bonded steel ground rod is bimetal composite material in which copper and steel is combined by sunlight unique technology and craft. It is made by molecularly bonding 99.9% pure copper onto a low carbon steel core,with high resistant to corrosion and very high tensible strength, can be driven by power hammer to great depths. It’s perfect combination of electrode intensity and anticorrosion performance,also the best and most economical ones to customer.

Features

1.Uniform plating thickness.

2.High corrosion resistance quality.

3.Convenient installation and beautiful appearance.

4.Purity of the copper is 99.9%, thus the conduct ability is very good.

5. Magnetic conducting rate is low, thus reducing the lightning effect.

6.The anti-tension strength is far higher than copper cable.

Applications

It is the most widely used grounding electrode in manual grounding.

Specification

Commodity	Model	Diameter(mm)	Length(mm)	Weight(Kg)
Copperbonded steel ground rod (Without thread )	SRB203	14.2	1200	1.53
	SRB213	14.2	1500	1.88
	SRB216	14.2	1800	2.29
	SRB223	14.2	2100	2.68
	SRB226	14.2	2400	3.00
	SRB236	14.2	3000	3.79
	SRB306	17.2	1200	2.19
	SRB313	17.2	1500	2.73
	SRB316	17.2	1800	3.27
	SRB326	17.2	2400	4.35
	SRB336	17.2	3000	5.44
	SRB416	20	2000	5.00
	SRB426	20	2500	6.25
	SRB436	20	3000	7.50
	SRB526	25	2500	9.80

Product can be made as per user’s special requirements, Sunlight can also provide you with pure copper grounding rod and stainless steel grounding rod according to the practical conditions of the grounding project.

Accessories

1.Driving head

Head A

Head B

To invoid top of the rod being damaged when driving rod by hammer.

2.Coupling

For use when coupling sectional rods to required depth.

3.Drilling head

	For use when ground rod is thread.
